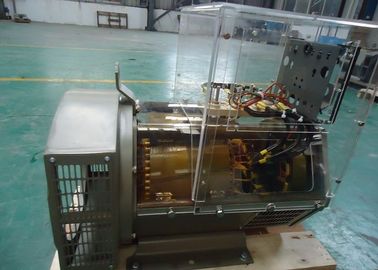

155kw / 155kva Stamford AC Generators One Phase For Cummins Generator Set

155kw / 155kva Stamford AC Generators One Phase For Cummins Generator Set

    • 155kw / 155kva Stamford AC Generators One Phase For Cummins Generator Set
  • 155kw / 155kva Stamford AC Generators One Phase For Cummins Generator Set

    Detail produk:

    Place of Origin: Wuxi,China
    Nama merek: Werna
    Sertifikasi: CE,ISO9001,SASO
    Model Number: WR274H

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 5pcs
    Harga: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    Kontak
    Detil Deskripsi produk
    Cahaya Tinggi:

    brushless ac generator

    ,

    brushless alternator generator

    155kw / 155kva Stamford AC Generators One Phase For Cummins Generator Set


    Quick detail:

    Name

    ALTERNATOR

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator

    Power

    155KW

    Certificate

    CE,ISO9001,SASO


    Specication:

    manufacture

    Wuxi City ,Jiangsu Prov ,China making alternators

    Output type

    AC Single Phase Brushless generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110V~240V

    Frequency

    50Hz

    Speed

    1500RPM

    Mounting Dimension

    Stamford Type

    Winding  pitch

    2/3 pitch

    Excitation

    Brushless, self-excited, synchro

    Insulation Class

    H


    Description:
    1) Protection class IP23, insulation class H.
    2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable for indoors marine applications.
    3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc
    4) Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
    5) The power factor ranges from 0.8 to 1.
    6) Telephone influence factor is less than 50, according to NTMA.
    7) Transient voltage dip for rated step load at 0.8 power factor is less than 18%.
    8) Overload standard according to NEMA.
    9) All generator statore are wound to 2/3 pitch.

     Frequency And Voltage
    50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
    Insulation and Protection
    Insulation: H, Protection: IP22

    Voltage Regulators
    The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

    Winding
    All generator stators are wound to 2/3 pitch



    FAQ:

    1. Q:When was your company established?

           A:in 2005

    2. Q:What is your main products?

           A: Alternator, diesel generator, Motor.

    3. Q:What certificate you get?

           A: We pass ISO9001-2008 and approved by CE,ISO9001

    4. Q: What is your MOQ of this item?

           A: 1-10PCS

    5. Q: What is the lead time?

           A: 25-30 days after receiving your L/C or TT deposit.

    6. Q: Is it all right to make customer's own brand name?

           A: We can be your OEM manufacture with your authorization of brand.

    7. Q: Where is your Loading Port?

           A: Shanghai, China Port.

    8. Q: What are your payment terms?

           A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.

    9. Q: What is your company's available production capacity?

           A: 3000-5000 pieces against your orders.
