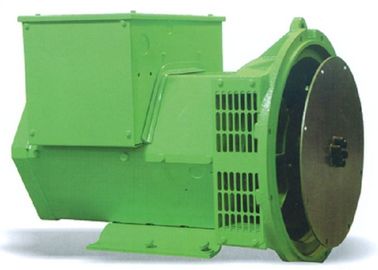

Small 12kw / 15kva Brushless AC Generator With 2 / 3 Pitch For Perkins Generator Set

Small 12kw / 15kva Brushless AC Generator With 2 / 3 Pitch For Perkins Generator Set

    • Small 12kw / 15kva Brushless AC Generator With 2 / 3 Pitch For Perkins Generator Set
  • Small 12kw / 15kva Brushless AC Generator With 2 / 3 Pitch For Perkins Generator Set

    Detail produk:

    Place of Origin: Wuxi,China
    Nama merek: Werna
    Sertifikasi: CE,ISO9001,SASO
    Model Number: WR162E

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 5pcs
    Harga: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    Kontak
    Detil Deskripsi produk
    Cahaya Tinggi:

    self-excited ac generator

    ,

    brushless synchronous generator

    Small 12kw / 15kva Brushless AC Generator With 2 / 3 Pitch For Perkins Generator Set




    Quick Detail:

    Name

    Alternator

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator



    Power

              12kw

    Certificate

    CE,ISO9001,SASO




    Specifications:

    Model

    WR162E

    manufacturer

     Wuxi City ,Jiangsu Prov ,China making alternators

    Output Type

    AC Three Phase diesel generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    190-454V

    Frequency

    50HZ

    Speed

    3000RPM

    Mounting dimensions

    Stamford Type

    Winding Pitch

    2 / 3 pitch

    Excitation

    Brushless, self-excited, synchronous

    Insulation Class

    H




    Description:
    Frequency And Voltage
    50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
    Insulation and Protection
    Insulation: H, Protection: IP23
    Voltage Regulators
    The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
    Winding
    All generator stators are wound to 2/3 pitch.
    The quality management system of our factory
    A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.



    Generator with permanent magnet 12kw/15kva



    Technical data

    Werna Type 3Phase 50Hz3000rpm Shaft Length Copper total weight Core length
             380V~415V
    KVA KW mm kgs mm
    WR162D 12.5 10 373.16 12.22 66
    WR162E 15 12 373.16 13.02 88
    WR162F 17.5 14 425.16 13.44 102
    WR162G 25 20 425.16 15.2 140
    WR182H 30 24 490.16 15.88 160
    WR182J 35 28 490.16 17.19 190
    WR182K 37.5 30 530.16 18.48 225



    FAQ

    1. Q: What is the lead time?

          A: 25-30 days after receiving your L/C or TT deposit.

    2. Q: Is it all right to make customer's own brand name?

           A: We can be your OEM manufacture with your authorization of brand.

    3. Q: Where is your Loading Port?

           A:Shanghai, China Port.

    4. Q: What are your payment terms?

           A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.

    5. Q: What is your company's available production capacity?

           A: 3000-5000 pieces against your orders.
