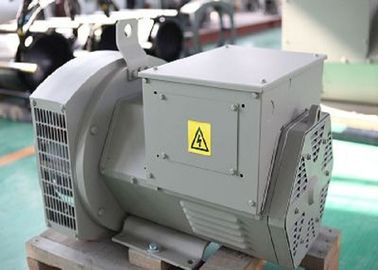

12/6 Wire Three Phase Brushless Alternator 18.5kva Copy Stamford Type

12/6 Wire Three Phase Brushless Alternator 18.5kva Copy Stamford Type

  • 12/6 Wire Three Phase Brushless Alternator 18.5kva Copy Stamford Type
  • 12/6 Wire Three Phase Brushless Alternator 18.5kva Copy Stamford Type
12/6 Wire Three Phase Brushless Alternator 18.5kva Copy Stamford Type
Detail produk:
Place of Origin: Wuxi,China
Nama merek: Werna
Sertifikasi: CE,ISO9001,SASO
Model Number: WR184E16
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1pcs
Harga: usd 466 fob sahnghai
Packaging Details: Plywood
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 1000units/month
Kontak
Detil Deskripsi produk
Rated Voltage: 190-454v Frequency: 50HZ
speed: 1500rpm Mounting dimensions: Stamford Type
life time: more than 20 years TIF: <50
Cahaya Tinggi:

self-excited ac generator

,

brushless ac alternator

12/6 Wire Three Phase Brushless Alternator 18.5kva Copy Stamford Type



1. factory,wuxi china,half hour to shanghai

2. 90% products sell overseas12/6 Wire Three Phase Brushless Alternator 18.5kva Copy Stamford Type 0



Quick Detail:



Name :Alternator            Brand Name:WERNA

Color:According to the international standard color card

Feature:AC brushless synchronous excitation alternator

Certificate :CE,ISO9001,SASO





Specifications:

Model

WR184E16

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

50HZ

Speed

1500RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H


Description:


Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.


Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service

Werna factory provides high quality generator sets and alternator,each one is strictly test

before Export . After service and spart parts are availabale from our factory.



warrantee:2 years. During the warranted time, our company would be responsible for problems caused by quality of production or raw material.After expiration, our company provides cost maintenance. Further terms could be negotiable!
ATTENTION!!!WHY CHOSE WUXI WERNA???



our advantages
1. more than 5 years's experience in manufacturing generators&alternators
2. strong QC teams ,experienced sales people &skilled workers
3. 100% tested & waranteed before shipment to assure the top quality
4. ISO9001 SASO CE GS
5. T/T,L/C
6. prices:at least 5% lower  than the market
7. Fast delivery time ,normally 10 days12/6 Wire Three Phase Brushless Alternator 18.5kva Copy Stamford Type 1

Production line

12/6 Wire Three Phase Brushless Alternator 18.5kva Copy Stamford Type 212/6 Wire Three Phase Brushless Alternator 18.5kva Copy Stamford Type 3
