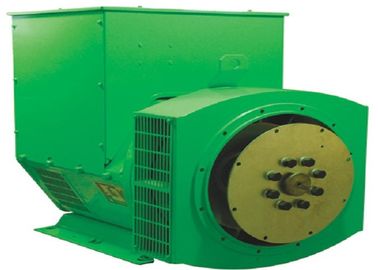

70kw / 70kva 1800rpm Diesel AC Generator sx460 For Honda Diesel Generator Set

70kw / 70kva 1800rpm Diesel AC Generator sx460 For Honda Diesel Generator Set

  • 70kw / 70kva 1800rpm Diesel AC Generator sx460 For Honda Diesel Generator Set
70kw / 70kva 1800rpm Diesel AC Generator sx460 For Honda Diesel Generator Set
Detail produk:
Place of Origin: Wuxi,China
Nama merek: WERNA
Sertifikasi: CE,ISO9001,SASO
Model Number: WR224G16
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 pcs
Harga: USD 1041/1 PIECE FOB SHANGHAI
Packaging Details: Plywood
Delivery Time: ± 15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Kontak
Detil Deskripsi produk
WIRE: 100% COPPER WIRE COLOR: OPTIONAL
WARRANTY: 2 YEARS LIFE TIME: 20 YEARS
THF: <50 PROTECTION: IP 22/23
Cahaya Tinggi:

single phase diesel generator

,

synchronous diesel generator

70kw / 70kva 1800rpm Diesel AC Generator sx460 For Honda Diesel Generator Set


Quick Detail:

Name

ALTERATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

          70kw

Certificate

CE,ISO9001,SASO


Specifications:

Model

WR224G16

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

60HZ

Speed

1800RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H


Description:

We are Professional Manufacture for Brushless Alternator since the year of 2000, Which type are Copy of Stamford.There are 5kVA up to 1386kVA at 1500/1800rpm, 3000/3600rpm, with 50/60Hz, 110V-690V for you selected.Our company located in Wuxi city, Which is near Shanghai.We have a first-class technical personnel and a set of strict quality management system.We use the best materials and carry out the strict procedure to ensure our high quality. For example ,we have two vacuum leaching insulated paint ,which other companies can't do. Besides our Quality Engineer are old engineer who have rich experiences. And our price is reasonable for share of market is first in our company.
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP22
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
70kw / 70kva 1800rpm Diesel AC Generator sx460 For Honda Diesel Generator Set 0
70kw / 70kva 1800rpm Diesel AC Generator sx460 For Honda Diesel Generator Set 1
70kw / 70kva 1800rpm Diesel AC Generator sx460 For Honda Diesel Generator Set 2

70kw / 70kva 1800rpm Diesel AC Generator sx460 For Honda Diesel Generator Set 3
