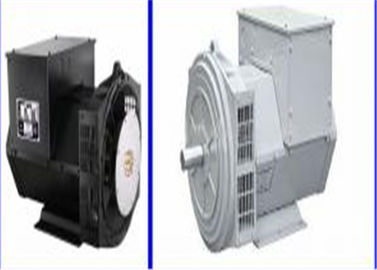

Industrial Stamford 3 Phase Generator Synchronous 6.5kw - 1200kw

Industrial Stamford 3 Phase Generator Synchronous 6.5kw - 1200kw

  • Industrial Stamford 3 Phase Generator Synchronous 6.5kw - 1200kw
Industrial Stamford 3 Phase Generator Synchronous 6.5kw - 1200kw
Detail produk:
Tempat asal: Wuxi,China
Nama merek: Werna
Sertifikasi: CE,ISO9001,SASO
Nomor model: WR224E
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 5pcs
Harga: negotiation
Kemasan rincian: Plywood
Waktu pengiriman: Within 10 days
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 1000units/month
Kontak
Detil Deskripsi produk
manufacturer: Wuxi City ,Jiangsu Prov ,China making alternators Wire: 100% full copper
Warranty: 2 years Mounting dimensions: Stamford Type
Insulation class: H Protection: IP 22
Cahaya Tinggi:

three phase synchronous generator

,

3 phase alternator

Industrial Stamford 3 Phase Generator Synchronous 6.5kw - 1200kw







Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

48KW

Certificate

CE,ISO9001,SASO



Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

190V~454V

Frequency

50Hz

Speed

1500RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H

Description:

ac synchronous three phase industrial alternators

Electric performance

Rated output power: 48KW

Rated voltage:400/230v, 440/254v, 220/127v, etc.

Phase/connecting method: 3 phase 12wire/Y type connection

Rated frequency: 50/60hz

Rated speed: 1500/1800rpm

Excited type: Brushless, self excited

Insulation: Class H

Protection: IP23

Voltage regulation: AVR automatic control

Steady voltage regulation≤±1.0%

Transient voltage regulations≤+20%, -15%

Adjustable voltage range 95-105%Un

Sine waveform distortion rate at no-load, ≤5%,(line voltage)



The advantage of our material:

1. Winding enamelled wire is 100% copper

2. The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.

3. The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.

4. All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.

5. All the rotors and stators of our company use the rope of best nylon to tie.We promise the security of our products,the phenomenon of ribbon burst will never happen.

6. All the rotors should be tested by dynamic balance of Germany to go on test of balance. All the products of  our factory should be tested by specialized Test Room.



Why to choose Werna Alternator/generator?

1. 100% copper winding wire

2. In stock and fast delivery

3. Two year warranty

4. Best quality and competitive price

5. Two-time vacuum impregnation dipping

6. powerful quality control team

7. CE,ISO9001

8. Good after-sale service

Our products

Industrial Stamford 3 Phase Generator Synchronous 6.5kw - 1200kw 0

Our package

Industrial Stamford 3 Phase Generator Synchronous 6.5kw - 1200kw 1
