144kw 180kva Three Phase AC Synchronous Generator For DEUTZ Generator Set

144kw 180kva Three Phase AC Synchronous Generator For DEUTZ Generator Set

  • 144kw 180kva Three Phase AC Synchronous Generator For DEUTZ Generator Set
144kw 180kva Three Phase AC Synchronous Generator For DEUTZ Generator Set
Detail produk:
Place of Origin: Wuxi,China
Nama merek: WERNA
Sertifikasi: CE,ISO9001,SASO
Model Number: WR274EL
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 pcs
Harga: USD 1445 FOB SHANGHAI / 1 PIECEC
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Kontak
Detil Deskripsi produk
Packaging details: Packed in standard seaworthy packing (wooden cases / plywood etc) Material: Cold roll stator & 100 % copper
OEM Service: acceptable Color: optional
Insulation: H Protection: IP 22
Cahaya Tinggi:

three phase synchronous generator

,

three phase ac generator

144kw 180kva Three Phase AC Synchronous Generator For DEUTZ Generator Set





Quick detail:



Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

144KW

Certificate

CE,ISO9001,SASO





Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

208V~480V

Frequency

60Hz

Speed

1800RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H





Description:

ac synchronous three phase industrial alternators

Electric performance

Rated output power: 144KW

Rated voltage:400/230v, 440/254v, 220/127v, etc.

Phase/connecting method: 3 phase 12wire/Y type connection

Rated frequency: 50/60hz

Rated speed: 1500/1800rpm

Excited type: Brushless, self excited

Insulation: Class H

Protection: IP23

Voltage regulation: AVR automatic control

Steady voltage regulation≤±1.0%

Transient voltage regulations≤+20%, -15%

Adjustable voltage range 95-105%Un

Sine waveform distortion rate at no-load, ≤5%,(line voltage)



The advantage of our material:

1. Winding enamelled wire is 100% copper

2. The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.

3. The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.

4. All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.

5. All the rotors and stators of our company use the rope of best nylon to tie.We promise the security of our products,the phenomenon of ribbon burst will never happen.

6. All the rotors should be tested by dynamic balance of Germany to go on test of balance. All the products of  our factory should be tested by specialized Test Room.



Why to choose Werna Alternator/generator?

1.100% copper winding wire

2. In stock and fast delivery

3. Two year warranty

4. Best quality and competitive price

5. Two-time vacuum impregnation dipping

6. powerful quality control team

7. Good after-sale service

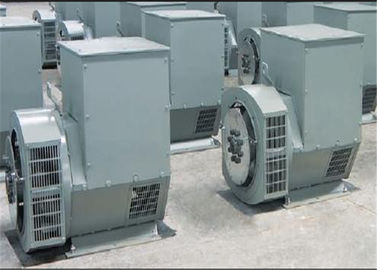

Our warehouse

144kw 180kva Three Phase AC Synchronous Generator For DEUTZ Generator Set 0

144kw 180kva Three Phase AC Synchronous Generator For DEUTZ Generator Set 1
