Class H 12KW Brushless Synchronous Generator For Cummins Generator Set 1800 RPM

Class H 12KW Brushless Synchronous Generator For Cummins Generator Set 1800 RPM

    • Class H 12KW Brushless Synchronous Generator For Cummins Generator Set 1800 RPM
  • Class H 12KW Brushless Synchronous Generator For Cummins Generator Set 1800 RPM

    Detail produk:

    Place of Origin: Wuxi,China
    Nama merek: Werna
    Sertifikasi: CE,ISO9001,SASO
    Model Number: WR274F

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 1 pcs
    Harga: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    Kontak
    Detil Deskripsi produk
    Wire: 100% copper wire Life time: 20 years
    Warranty: 2 years THF: <2%
    Insulation class: H Protection: IP22/23
    Cahaya Tinggi:

    self-excited ac generator

    ,

    brushless ac alternator

    Class H 12KW Brushless Synchronous Generator For Cummins Generator Set 1800 RPM




    Quick Detail:







     Name :Alternator                         Brand Name :WERNA

    Color:According to the international standard color card

    Feature :AC brushless synchronous excitation alternator

    Certificate:CE,ISO9001,SASO







    Specifications:

    Model

    WR162F

    manufacturer

     Wuxi City ,Jiangsu Prov ,China making alternators

    Output Type

    AC Single Phase diesel generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110-240V

    Frequency

    50HZ

    Speed

    1800RPM

    Mounting dimensions

    Stamford Type

    Winding Pitch

    2 / 3 pitch

    Excitation

    Brushless, self-excited, synchronous

    Insulation Class

    H





    Description:
    Frequency And Voltage
    50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
    Insulation and Protection
    Insulation: H, Protection: IP22
    Voltage Regulators
    The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
    Winding
    All generator stators are wound to 2/3 pitch.
    The quality management system of our factory
    A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.

    Quality Control Surveillance

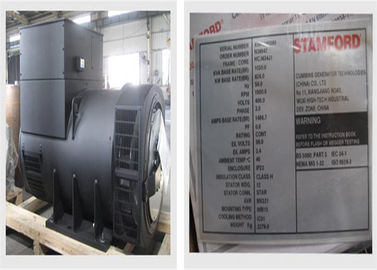

    Class H 12KW Brushless Synchronous Generator For Cummins Generator Set 1800 RPM 0


    Class H 12KW Brushless Synchronous Generator For Cummins Generator Set 1800 RPM 1
