| Brand Name: | Werna |
| Model Number: | WR184J |
| MOQ: | 5pcs |
| harga: | negotiable |
| Packaging Details: | Plywood |
| Payment Terms: | T/T |

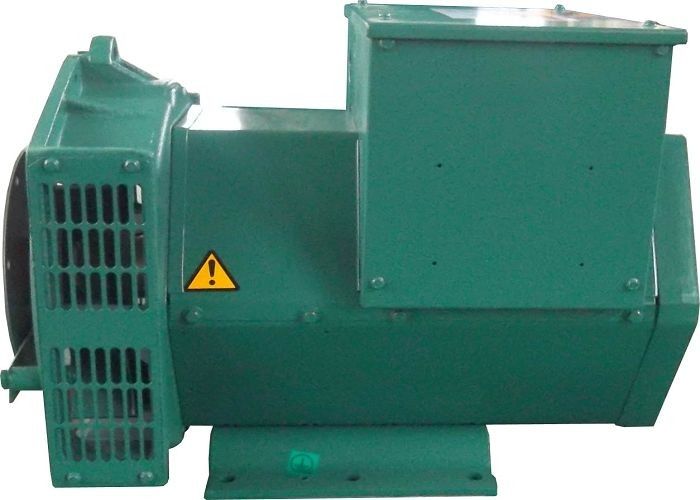

40kw Three Phase Brushless AC Generator
Quick detail:
|
Name |
ALTERNATOR |
Brand Name |
WERNA |
|
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator |
|
Power |
40KW |
Certificate |
CE,ISO9001,SASO |
Specication:
|
manufacture |
Wuxi City ,Jiangsu Prov ,China making alternators |
|
Output type |
AC Three Phase Brushless generator |
|
Terminal |
12 / 6 Wire |
|
Rated Voltage |
208V~480V |
|
Frequency |
60Hz |
|
Speed |
1800RPM |
|
Mounting Dimension |
Stamford Type |
|
Winding pitch |
2/3 pitch |
|
Excitation |
Brushless, self-excited, synchrous |
|
Insulation Class |
H |
Technical Datas
|
Werna Type |
3Phase 60Hz 1800rpm |
Shaft length |
Copper total weight |
Core length |
|
|
208V~480V |
|||||
|
KVA |
KW |
mm |
kgs |
mm |
|
|
WR164A |
10.2 |
8.2 |
373.16 |
9.98 |
65 |
|
WR164B |
13.8 |
11 |
373.16 |
11.18 |
80 |
|
WR164C |
16.9 |
13.5 |
400.16 |
11.6 |
100 |
|
WR164D |
20.2 |
16 |
400.16 |
11.88 |
115 |
|
WR184E |
28.8 |
23 |
440.16 |
14.72 |
150 |
|
WR184F |
34.4 |
27.5 |
530.16 |
16.2 |
190 |
|
WR184G |
37.5 |
30 |
530.16 |
17.8 |
230 |
|
WR184H |
46.9 |
37.5 |
673.3 |
19.21 |
255 |
|
WR184J |
50 |
40 |
673.3 |
20.48 |
285 |
Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
IP23 is for optional but the rated power will decrease 5%.
Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Winding
All generator stators are wound to 2/3 pitch.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.
Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
|
|
