| Brand Name: | WERNA |
| Model Number: | WR184EC |
| MOQ: | 5 buah |
| harga: | negotiable |
| Packaging Details: | Kayu lapis |
| Payment Terms: | T/T |

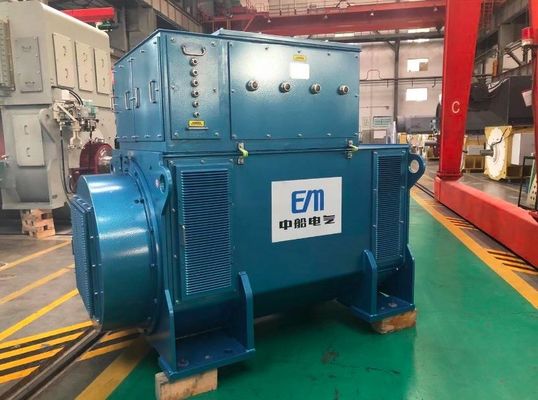

1500RPM 10.5kV TFC4seri generator tegangan tinggi, generator diesel AC Tiga Fase
1, Produsen:
CSIC Electrical Machinery Science & Technology Co., Ltd. Jenis Output: Generator Diesel Tiga Fasa & 3 Fasa AC
Nilai Tegangan: 10500V Pitch Berliku: 5/6 Pitch
Eksitasi: Brushless, Self-excited, Synchro Rated Current Sesuai Tegangan:
2, Spesifikasi:
| Model | TFC4 |
| pabrikan | CSIEM |
| Jenis keluaran | Generator diesel AC Tiga Fasa |
| Terminal | Empat Kawat |
| Tegangan Terukur | 10.5kV |
| Frekuensi | 50Hz |
| Kecepatan | 1500RPM |
| Pitch Berliku | 5/6 nada |
| Perangsangan | Tanpa sikat, bersemangat, sinkron |
| Kelas Isolasi | H |
3, data teknis
|
Jenis |
3Fase, 50Hz, 1500rpm |
Panjang poros |
Berat total tembaga |
Panjang inti |
|
| 10.5kV | |||||
| kVA | kW | mm | kg | mm | |
| TFC4 502-4 | 625 | 500 | 2143 | 237 | 420 |
| TFC4 502-4 | 750 | 600 | 2143 | 237 | 420 |
| TFC4 504-4 | 875 | 700 | 2143 | 262 | 470 |
| TFC4 506-4 | 1000 | 800 | 2288 | 313 | 540 |
| TFC4 508-4 | 1125 | 900 | 2288 | 360 | 590 |
| TFC4 508-4 | 1250 | 1000 | 2288 | 360 | 590 |
| TFC4 562-4 | 1500 | 1200 | 2193 | 382 | 560 |
| TFC4 564-4 | 1750 | 1400 | 2193 | 388 | 600 |
| TFC4 566-4 | 2000 | 1600 | 2193 | 465 | 660 |
| TFC4 568-4 | 2250 | 1800 | 2193 | 471 | 730 |
| TFC4 632-4 | 2500 | 2000 | 2400 | 548 | 620 |
| TFC4 634-4 | 2750 | 2200 | 2400 | 534 | 690 |
| TFC4 636-4 | 3000 | 2400 | 2550 | 567 | 750 |
|
