| Brand Name: | Werna |
| Model Number: | WR224G |
| MOQ: | 5pcs |
| harga: | negotiable |
| Packaging Details: | Plywood |
| Payment Terms: | T/T |

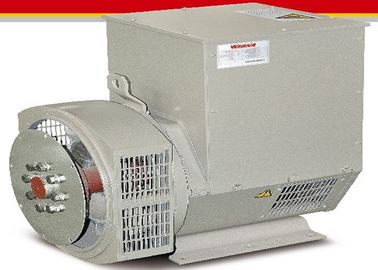

78kw / 97.5kva 3 Phase AC Brushless Generator 1800rpm For Perkins Generator Set
Quick detail:
Name | ALTERNATOR | Brand Name | WERNA |
Color | According to the international standard color card | Feature | AC brushless synchronous excitation alternator |
Power | 78KW | Certificate | CE,ISO9001,SASO |
Specication:
manufacture | Wuxi City ,Jiangsu Prov ,China making alternators |
Output type | AC Three Phase Brushless generator |
Terminal | 12 / 6 Wire |
Rated Voltage | 208V~480V |
Frequency | 60Hz |
Speed | 1800RPM |
Mounting Dimension | Stamford Type |
Winding pitch | 2/3 pitch |
Excitation | Brushless, self-excited, synchrous |
Insulation Class | H |
Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
IP23 is for optional but the rated power will decrease 5%.
Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Winding
All generator stators are wound to 2/3 pitch.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.
Advantages of our products
1, Advanced AVR :SX460 &SX440
2, H class insulation ensure the generator running in dreadful conditions
3, The 2/3 pitch design avoids excessive neutral currents
4, You can reconnect 12 ends of the terminals to meet other voltage
5, Single bearing and double bearing ,single phase and three phases
6, Standard IP23
|
|
